TEG1116P-16-150W is a Tenda PoE Switch that offers 16 10/100/1000Mbps Base-TX RJ45 ports 1-16 comply with IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 135W and can supply power to and exchange data with APs, IP cameras and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN and isolation to help reduce cabling costs of IP terminals like APs and IP cameras.
- 16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE
- 6KV Lightning Protection PoE Switch
- CCTV, Standard, VLAN and Isolation Operation Modes Offered
- 135W PoE power supply simplified wiring
- For any technical support kindly contact us on +011-30890072
SKU: 1000013

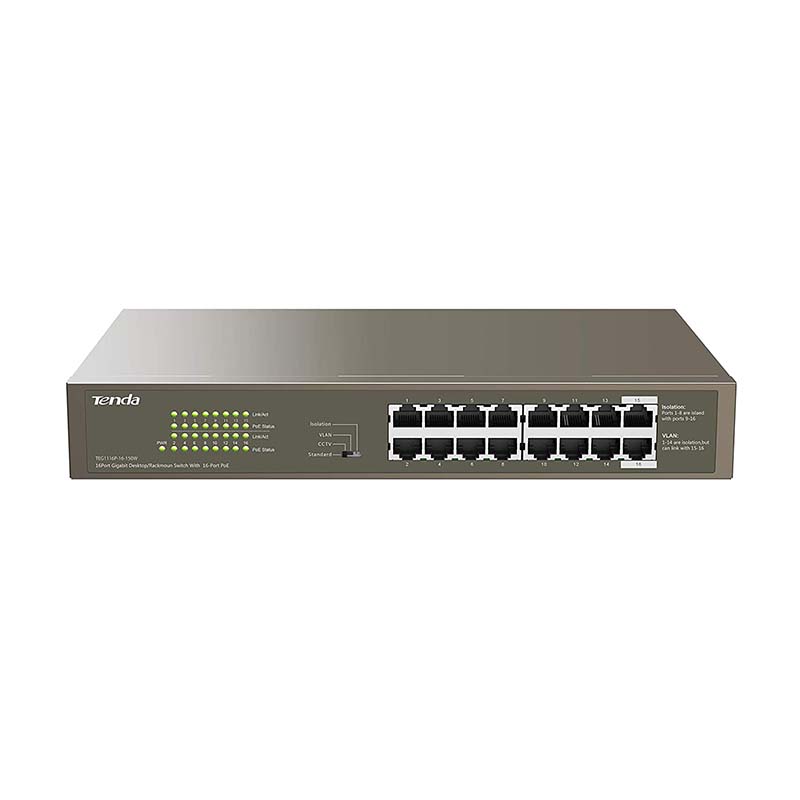

Tenda TEG1116P-16-150W 1000M & PoE 16-Port Gigabit Ethernet Switch with 16-Port PoE (Gray)
Standard&Protocol
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator
16*Link/Act per device
16*PoE per device
1*Power per device
Interface
16 10/100/1000Base-T ports(Data/Power)
exchange capacity
32 Gbps
Packet Forwarding Rate
23.6Mpps
PoE supply management
Port 1-16 support IEEE802.3at/af PoE standard
PoE through pin
1 2 4 5 +
3 6 7 8 –
Input Voltage
AC： 100-240V～50/60Hz
Dimension
294*178*44mm ( W x D x H )
Power Consumption
in full conguration:<150W
PoE Max Power Supply:135W
Port Features
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively.
Isolation: ports 1 to 8 and Ports 9 to 16 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
